CCTV Cameras

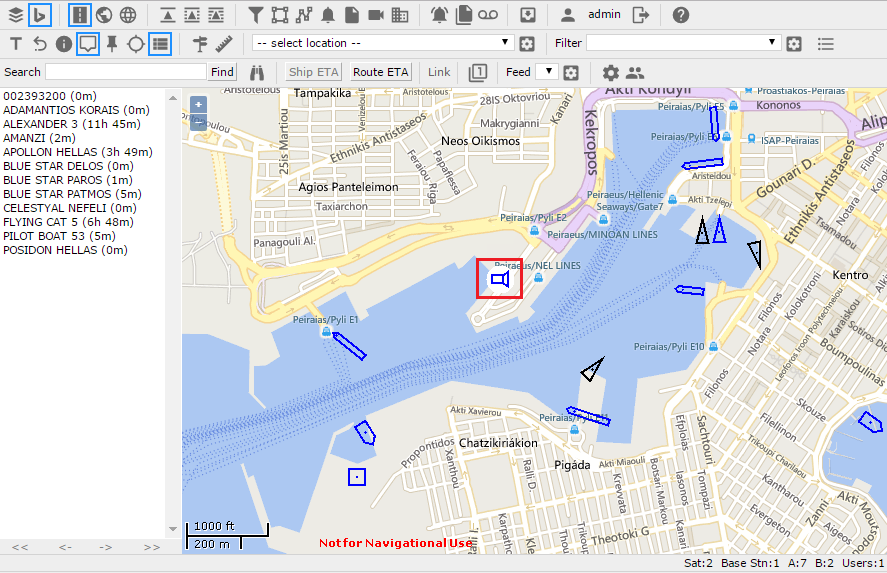

Click the CCTV Cameras button in the toolbar to open the CCTV Cameras window.

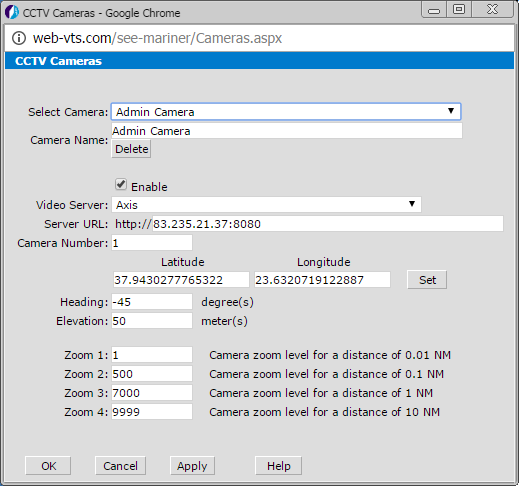

You may use this form to specify the video server URL, position, and elevation of your CCTV camera(s).

The system will show the camera location on the map.

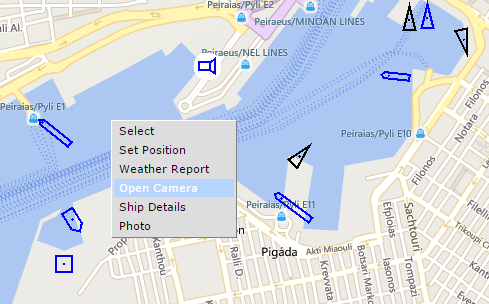

To open the camera, right-click on the main map view and select Open Camera from the menu.

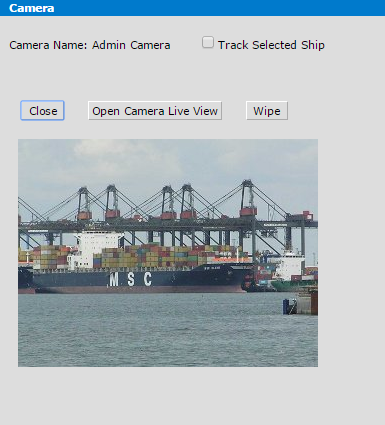

You will see the picture captured by the camera.

To use the camera for tracking a particular ship:

1. Check the Track Selected Ship box.
2. Select the ship on the main map view (click on the ship icon).
