Circle zone

Creating a circle zone:

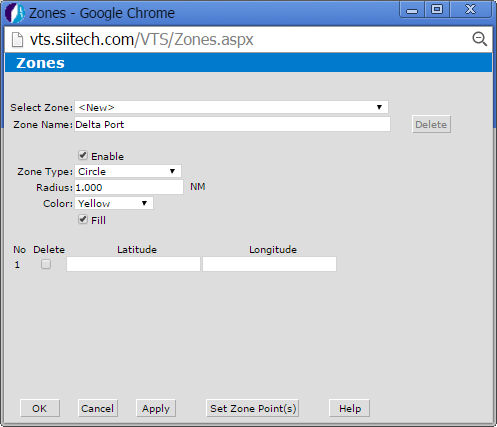

• Click the Zone Designer button to open the Zone Designer.
• Select "<New>" from the Select Zone drop-down list.
• Type "Delta Port" in the Zone Name field.
• Leave the Enable box checked.
• Select “Circle” from the Zone Type drop-down list.
• Leave the default numerical value in the Radius field.
• Select “Yellow” from the Color drop-down list.
• Leave the Fill box checked.

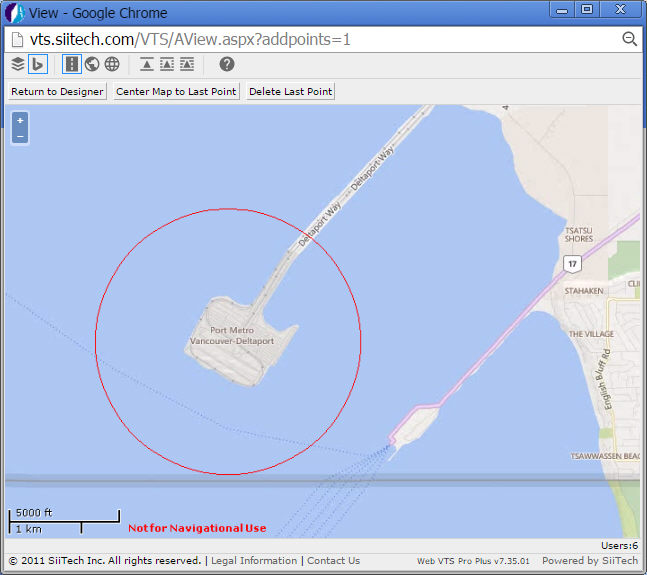

Click the Set Zone Point(s) button to select the center of your circle. You will be redirected to the map view. Click on your desired location to establish your circle zone's center. Click the Return to Designer button to go back to the Zone Designer window.
Tip: Zooming in on the map enlarges the circle for better precision.

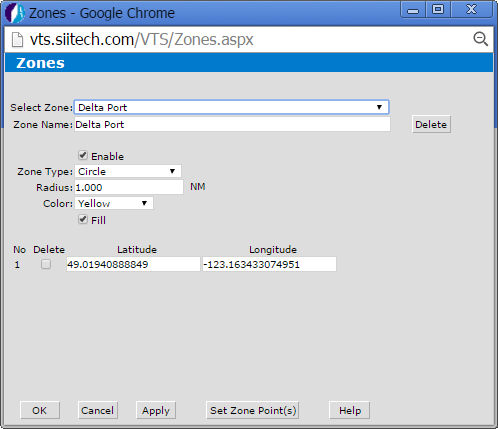

The Zone Designer will now display the exact latitude and longitude coordinates of your circle zone's center.

Click the Apply button to save zone changes. Click OK to return to the main view. You should now see a circle around your selected zone on the map.
