Note: This report will display inbound and outbound traffic on the Fraser River.

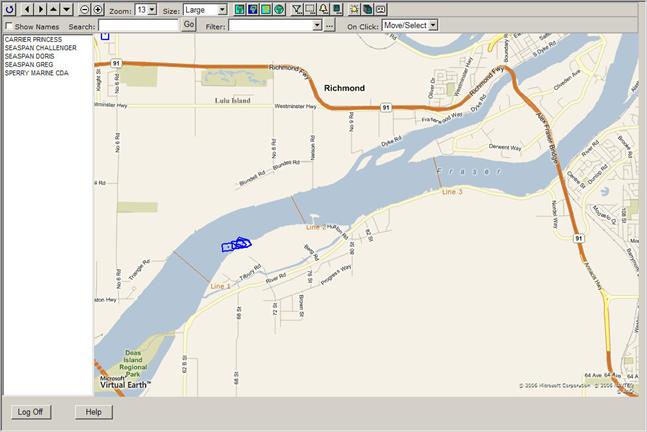

To produce this report we already built Line 1, Line 2 and Line 3 on the Fraser River.
Creating the Enter/Exit report:
Click
to open the Report Designer panel.

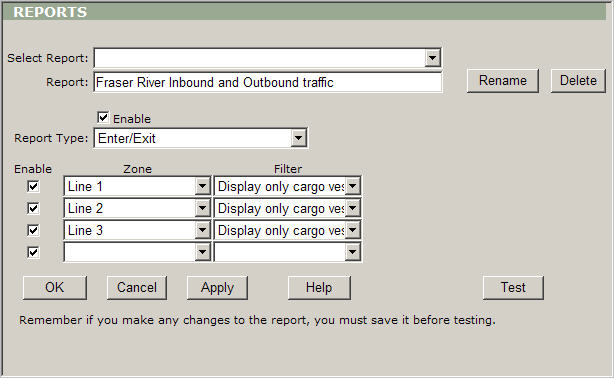

Click the Select Report dropdown box and select <New>.
Instead of “Report1” type “Fraser River Inbound and Outbound traffic” in the Report Name field.
Leave Enable checked.
Select “Enter/Exit” from Report Type.
Select “Line 1” from Zone.
Select “Line 2” from Zone.
Select “Line 3” from Zone.
Select “Display only cargo vessels” from Filter for all zones.
Click Apply to save the settings.

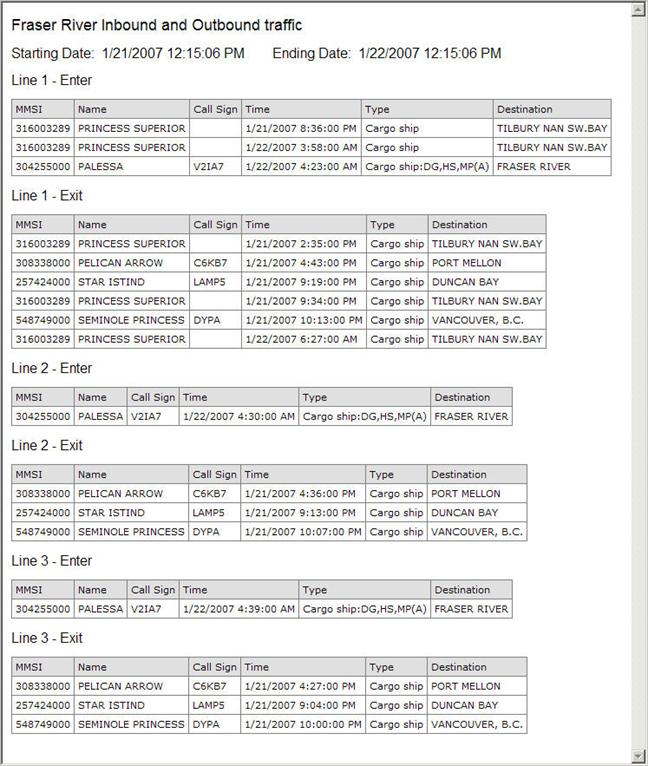

Click Test to display the report.
