Creating the line:
Click
to open the Zone Designer panel.

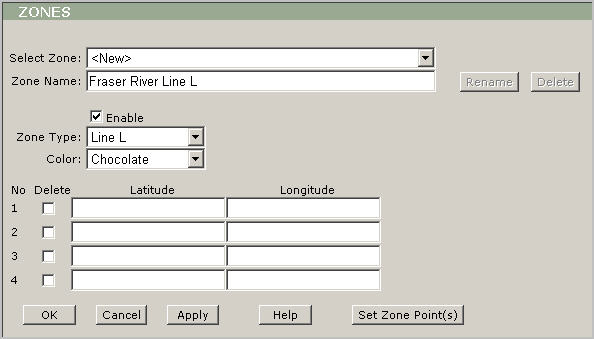

Select <New> from Select Zone.
Instead of “Zone1” type “Fraser River Line L” in the Zone Name field.
Leave Enable checked.
Select “Line L” from Zone Type.
Select
“Chocolate” from Color.

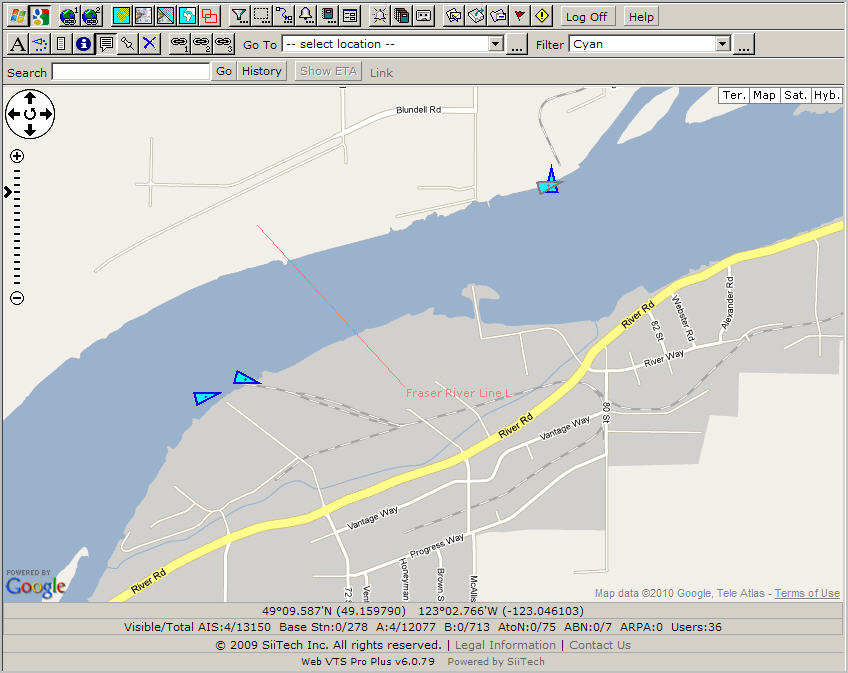

Then you need to add line points; please click the Set Zone Points button and you will be redirected to the map view.

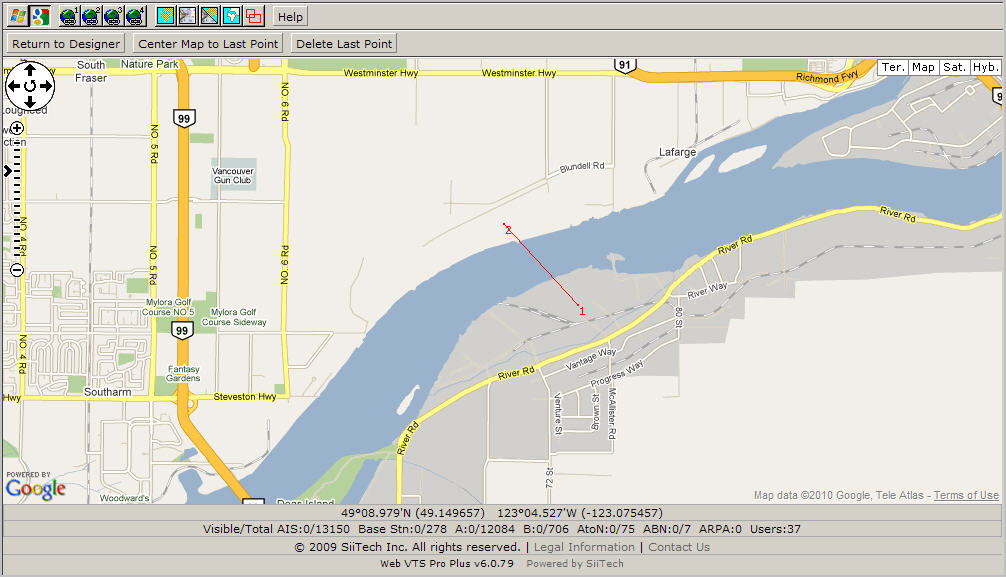

Draw
the line by left clicking on the map.

Click
the Return to Zone Designer button to return to the Zone Designer
panel.

Choose
the OK button to save your changes and return to the main view.
