Click
to open the Filter Designer panel.
Select "New" in the Select Filter list.
Instead of “FilterX” type “Only one vessel” in the Filter Name field.
This filter will display only the COMMITMENT vessel and hide all others.
Click
to open the Filter Designer panel.
Select "New" in the Select Filter list.
Instead of “FilterX” type “Only one vessel” in the Filter Name field.
Note: The Filter Designer allows a user to create as many conditions of the filter as wanted. Each line contains one condition. The fist line has the highest priority and so on.

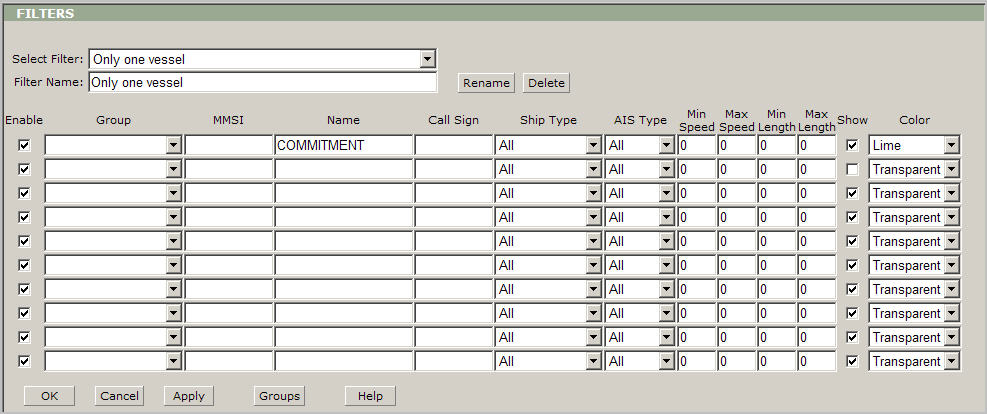

Now you can start to make settings for displaying only COMMITMENT. Use the fist line.
Leave Enable checked.
Leave Group blank
Leave MMSI blank.
Type “COMMITMENT” in the Name field.
Leave Call Sign blank.
Leave “All” in Ship Type.
Leave “All” in AIS Type.
Leave "0" in Min Speed, Max Speed, Min Length and Max Length
Leave Show checked.
Select “Lime” from Color.
You can use the second line to make settings to hide all other vessels:
Leave Enable checked.
Leave Group blank.
Leave MMSI blank.
Leave Name blank.
Leave Call Sign blank.
Leave “All” in Ship Type.
Leave “All” in AIS Type.
Leave "0" in Min Speed, Max Speed, Min Length and Max Length
Clear Show.
Leave “Transparent” in Color.
Before the filter was applied:
Here is the result of applying the filter:
